Stylish vanguard LED products
Fashionable Ads catch the eyeballs
WLT specification downloadWLT videos view

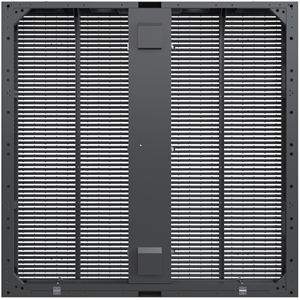

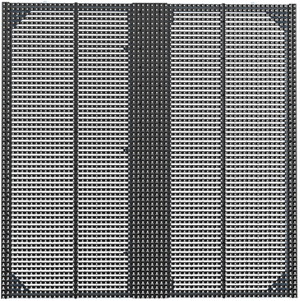

Standard module size
Considering viewing distance of various projects,choose the best suitable pixel pitch and assemble standard module into big transparent led screen.
GOB Tech
Waterproof,iP65
Technical specifications
| Parameters | ||
|---|---|---|
| Pixel spacing (mm) | Horizontal 3.9/ vertical 7.8 | Horizontal 7.8/ vertical 7.8 |
| Physical pixels (dot/m2) | 32,768 | 16384 |
| Display resolution | 256*128 (interlaced) /256*64 (stretch) | 128*64 |
| Maximum power consumption (W/m2) | 380(all white) | 350(all white) |
| Average power consumption（W/M2） | 153(animated) | 126(animated) |
| Display brightness (NITS) | 1000/2500/5000 | ≥700/1400/4500(2020/1921LED) |
| Screen refresh rate (Hz) | 3,840(16bit) | ≥1920 |
| LED encapsulation | SMD1921/2020/2121 | SMD1921/2020 |
| permeability | 72% | |
| Box weight (Kg) | 4.9Kg | |
| Box size (mm) | 1,000*500 | |
| LED control system | Nova A series / Ling Xingyu Mini Series / modal M-RD71 | |
| Display interface | Terminal DVI/HDMI/DP | |
| Gray level | 16bit | |
| Protection grade | Ip65 | |
| working voltage | DC4.5V | |
| input voltage | AC100-240V 50/60Hz Wide pressure | |
| Cabinet material | Die-casting aluminum | |
| Installation method | Hoisting (longitudinal 10 boxes) / barrier mounting / fixed installation | |
| LED Life | 100 thousand hours | |
Application area of LED transparent screen
LED transparent screen will open up a new scope of use, lead the field trend, with a broad market prospects, especially for large shopping malls, civilized square, commercial construction, hotels, stadiums, stage rental, municipal engineering, hotels, outdoor curtain walls, 4S shops and a variety of luxury display windows and other fields, is expected to be The field of advertising invents a new blue ocean.
Related case
