• WLS Series Intelligent Front Access 16:9 LED Display Unit


Intelligent Front Access 16:9 LED Display Unit

WLS specification downloadWLS videos view

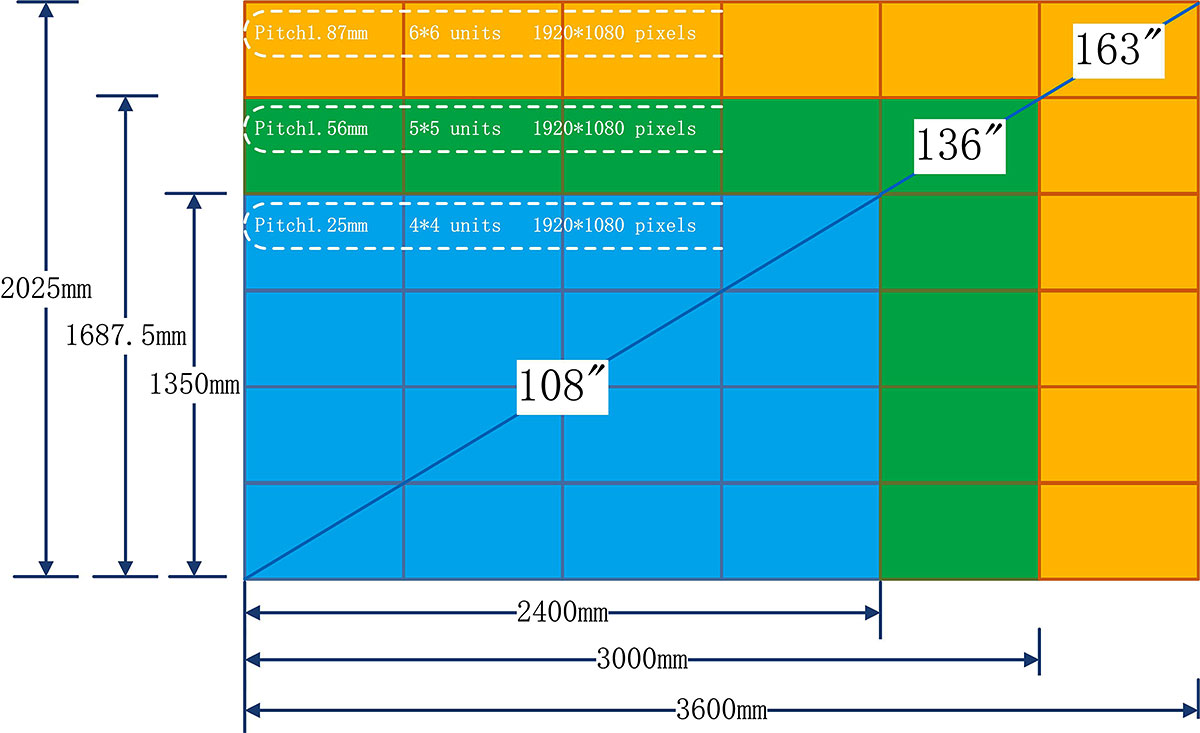

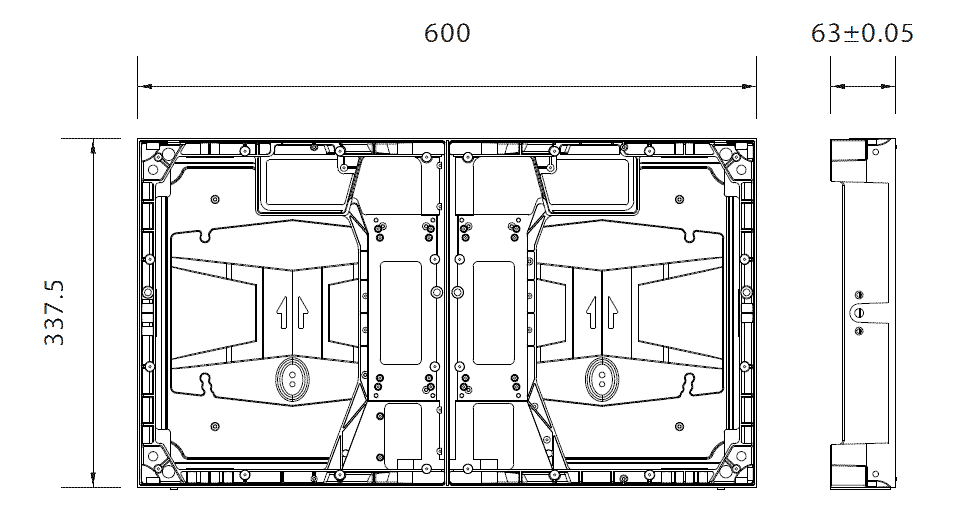

Cabinet size

Secure and stable

Integrated Power and Data means no external cables.

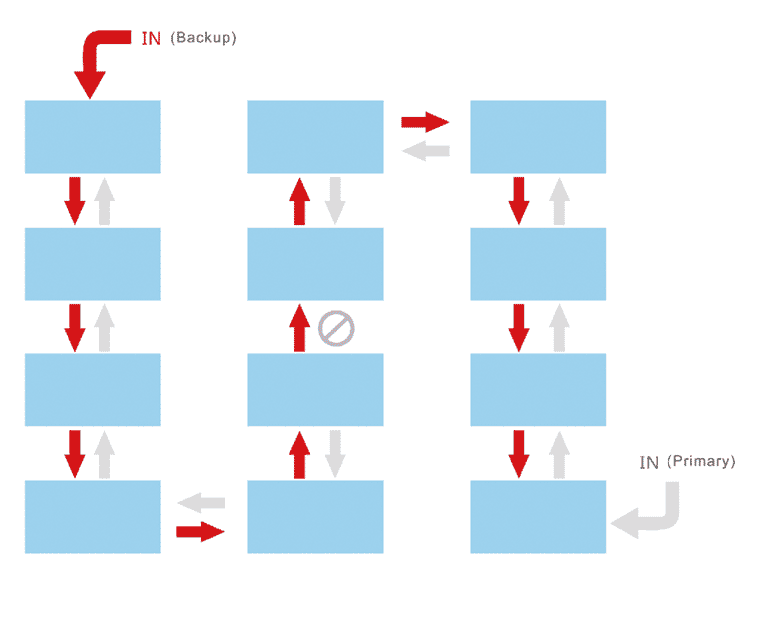

Full Redundancy

Power, Data and the control system can be wired for increased reliability.

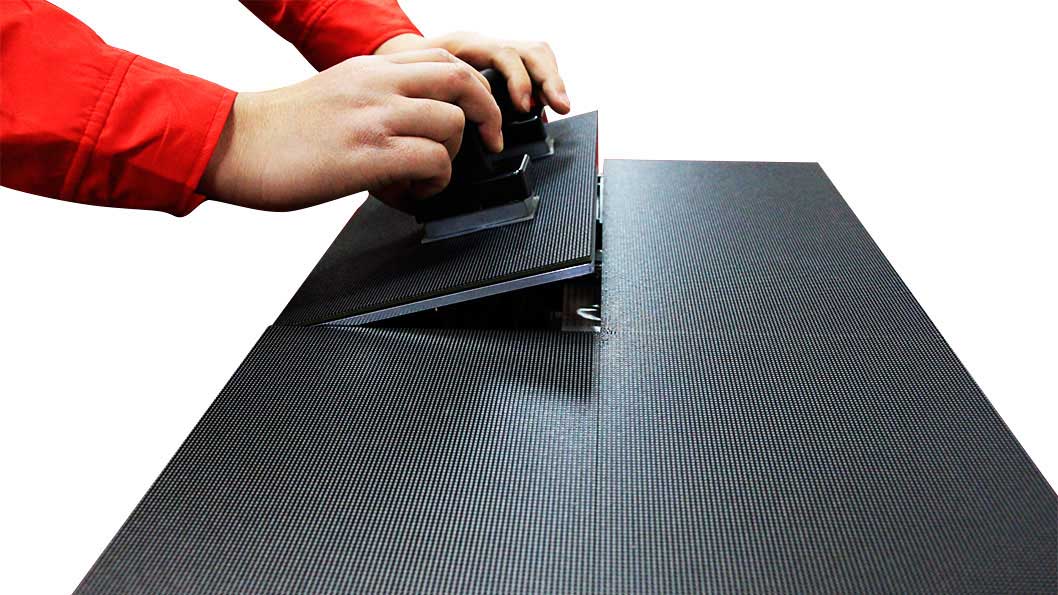

Front Service

Technical specifications

Parametersvalue
Pixel spacing (mm)£©0.931.251.561.872.5
Application environment / protection levelIndoor,IP30Indoor,IP30Indoor,IP30Indoor,IP30Indoor,IP30
Installation methodFixedFixedFixedFixedFixed
Pixel compositionSMD 1R1G1BSMD 1R1G1BSMD 1R1G1BSMD 1R1G1BSMD 1R1G1B
Pixel density1137777640000409600284444160000
Gray level (bit)1616161616
Product weight(Kg/tile)5.245.245.245.245.24
brightness(nit)800800800800800
contrast ratio5000:15000:15000:15000:15000:1
refresh frequency(Hz)19203840384038403840
Product size(mm)600*337.5*66 (W*H*D)600*337.5*66 (W*H*D)600*337.5*66 (W*H*D)600*337.5*66 (W*H*D)600*337.5*66 (W*H*D)
Maintenance modeFront&RearFront&RearFront&RearFront&RearFront&Rear
viewing angleH:160°„£¨V:140°„H:160°„£¨V:140°„H:160°„£¨V:140°„H:160°„£¨V:140°„H:160°„£¨V:140°„
Power consumption (W/m2)
       (maximum, average)
Max°‹700
       Average°‹240
Max°‹700
       Average°‹240
Max°‹700
       Average°‹240
Max°‹700
       Average°‹240
Max°‹700
       Average°‹240
