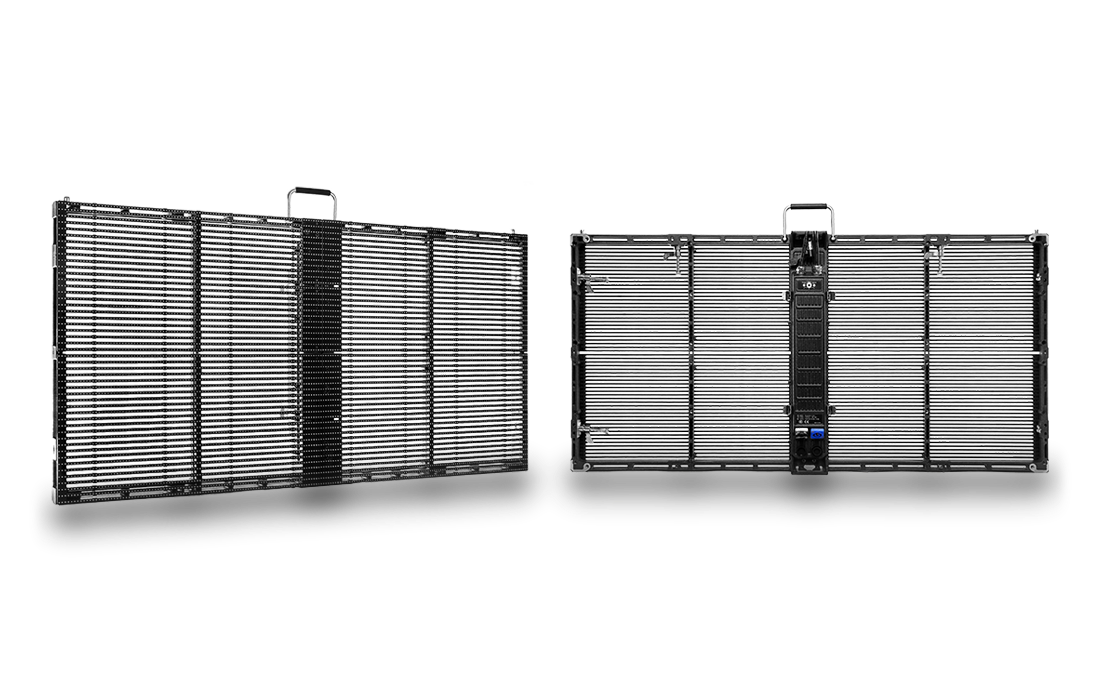

• WLT Series

Stylish vanguard LED products

Fashionable Ads catch the eyeballs

WLT specification download WLT videos view

Standard module size

Considering viewing distance of various projects,choose the best suitable pixel pitch and assemble standard module into big transparent led screen.


Cutable module


80% Transparency


Technical specifications






Parameters
Pixel spacing (mm)Horizontal 3.9/ vertical 7.8Horizontal 5.2/ vertical 10.4Horizontal 10.4/ vertical 10.4Horizontal 15.6/ vertical 15.6
Physical pixels (dot/m2)32,7681843292164096
Display resolution256*64 (interlaced) 192*9696*9664*64
Maximum power consumption (W/m2)800(all white)700(all white)600(all white)800(all white)
Average power consumptionW/M2260(animated)280(animated)250(animated)300(animated)
Display brightness (NITS)2500/5000550050006000
Screen refresh rate (Hz)3,840(16bit)3,840(16bit)3,840(16bit)3,840(16bit)
LED encapsulationSMD1921SMD1921SMD2727SMD2727
Transparecy53%58%
71%
Box weight (Kg)1514
Box size (mm)1000*500
LED control systemNOVA A4s
Display interfaceWiFi / DVI / HDMI / DP / RJ45 /Internet Remote Control
Gray level16bit
Protection gradeIP65
working voltage-1040C,10%-90% No Condensation
input voltageDVI / HDMI / DP /VGA
Cabinet materialDie cast aluminum
Installation methodStacking, hanging & fixed
LED Life>100'000hours

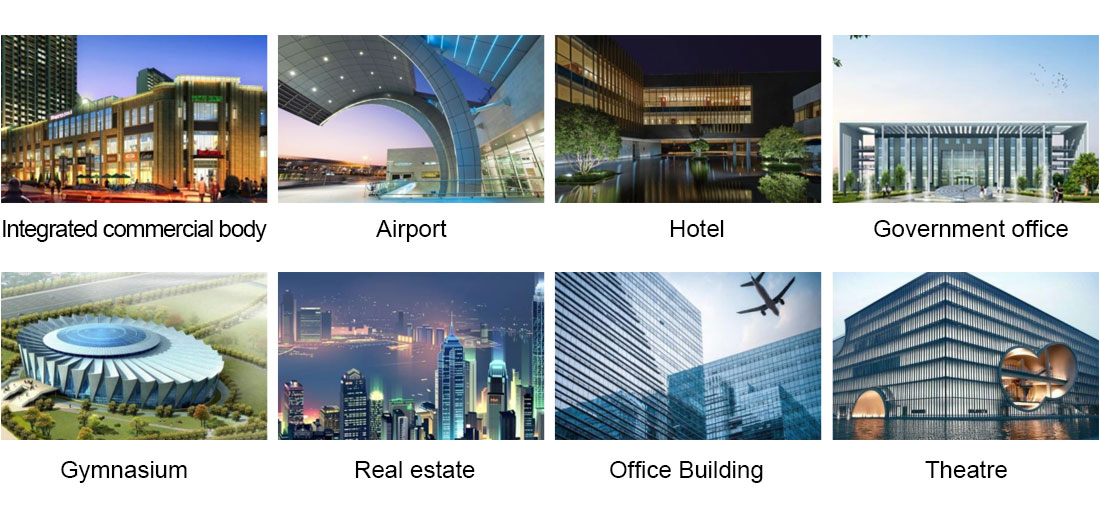

Application area of LED transparent screen

LED transparent screen will open up a new scope of use, lead the field trend, with a broad market prospects, especially for large shopping malls, civilized square, commercial construction, hotels, stadiums, stage rental, municipal engineering, hotels, outdoor curtain walls, 4S shops and a variety of luxury display windows and other fields, is expected to be The field of advertising invents a new blue ocean.
